PICmicro (formally PICtutor) by John Becker

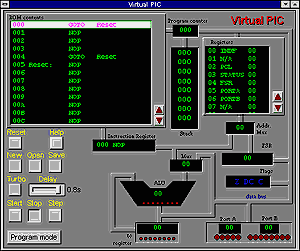

Screenshot of the Virtual PIC
The Virtual PIC

SOFTWARE: The Assembly for PICmicro V2 CD-ROM contains a PIC simulator, which will teach you how to use PIC microcontrollers, with special emphasis on the PICx84 devices. The associated PICmicro MCU development board (available separately) can be used in conjunction with the simulator, and will also act as a test bed and programmer for future projects as your programming skills increase.

The interactive presentation shown here uses the specially developed Virtual PIC simulator to show exactly what is happening as you run, or step through, a program. In this way, the CD brings the EPE PIC Tutorial series to life and provides the easiest and best-ever introduction to this subject.

Nearly 40 tutorials cover almost every aspect of PIC programming in an easy-to-follow sequence.
HARDWARE: Whilst the CD-ROM (discussed above) can be purchased and used on its own, the physical demonstration provided by the Version 2 PICmicro MCU Development Board, plus the ability to program and test your own PICmicro microcontrollers as well as program a range of 8, 18, 28, and 40-pin devices, really reinforces the lessons learned. The hardware will also be an invaluable development and programming tool for future work once you have mastered PIC software writing.
  • Makes it easier to develop PICmicro projects.
  • Supports low cost FLASH-programmable PICmicro devices.
    Fully-featured integrated displays (13 individual LEDs, quad 7-segment display, and alphanumeric LCD display).
  • Supports PICmicro microcontrollers with A/D converters.
  • Fully protected expansion bus for project work.
  • All inputs and outputs available on screw terminal connectors for easy connection.

See also the associated C for PICmicro Version 2 CD-ROM.

The PICmicro development board
The PICtutor development board
PRICING:
      CD-ROM (Hobbyist/Student): $72 US Dollars (plus S&H)

Buy Now!
      CD-ROM (Institutional/Schools):
            single user		 $159 US Dollars (plus S&H)

Buy Now!
      CD-ROM (Institutional/Schools):
            ten user network license		 $399 US Dollars (plus S&H)

Buy Now!
      CD-ROM (Institutional/Schools):
            site license		 $959 US Dollars (plus S&H) Buy Now!
      PICmicro MCU Development Kit:
      (requires CD-ROM above)		 $160 US Dollars (plus S&H)
  		 Buy Now!
      12V 500mA PSU (UK Plug)
      25-way 'D' type connection cable		 $12 US Dollars (plus S&H)
$8 US Dollars (plus S&H)		 Buy Now!
MINIMUM SYSTEM REQUIREMENTS: PC with 486/33MHz or higher, VGA+256 colors or better, CD-ROM drive, 8MB RAM, 8MB free space on hard disk. Windows 3.1/95/98/NT, mouse.
